refractory ball
Features
The diameter of the product is normallyφ40-φ80mm,large surface area, sufficient heat exchange.It was mainly used in various hot stove with above500m³blast furnace,because of different wind temperature and ash density containing in coal gas for buring,the material of ball is differ.
|
Item |
High strength high alumina ball |
Low creep high alumina ball |
|
φ40 mm |
φ50 mm |
φ60 mm |
φ50 mm |
φ60mm |
|
Al2O3% |
≥65 |
≥65 |
≥65 |
≥65 |
≥65 |
|
Fe2o3% |
≤2.2 |
≤2.2 |
≤2.2 |
≤2.0 |
≤2.0 |
|
Refractoriness ℃ |
≥1790 |
≥1790 |
≥1790 |
≥1790 |
≥1790 |
|
Apparent porosity% |
≤24 |
≤24 |
≤22 |
≤22 |
≤22 |
|
Volume density g/cm³ |
≥2.2 |
≥2.3 |
≥2.4 |
≥2.4 |
≥2.4 |
|
Compression strength(Mpa) |
≥10000 |
≥12000 |
≥15000 |
≥13000 |
≥15000 |
|
RUL(Refractoriness Under Load) |
≥1460 |
≥1460 |
≥1480 |
≥1480 |
≥1500 |
|
Reheating Liner Change Rate |
- |
- |
- |
0.1~0.4 |
0.1~0.4 |
|
Creep rate% |
- |
- |
- |
1450℃x50h ≤1 |
1450℃x50h≤1 |

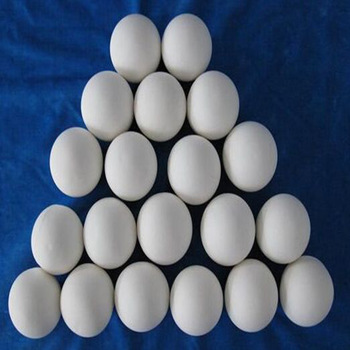

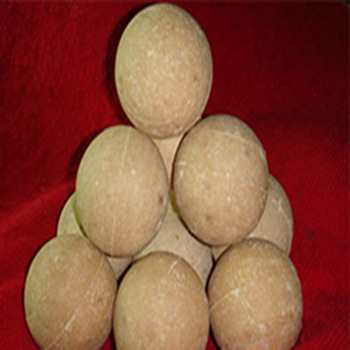

Product Images
